Oil Cooled Stabilizers

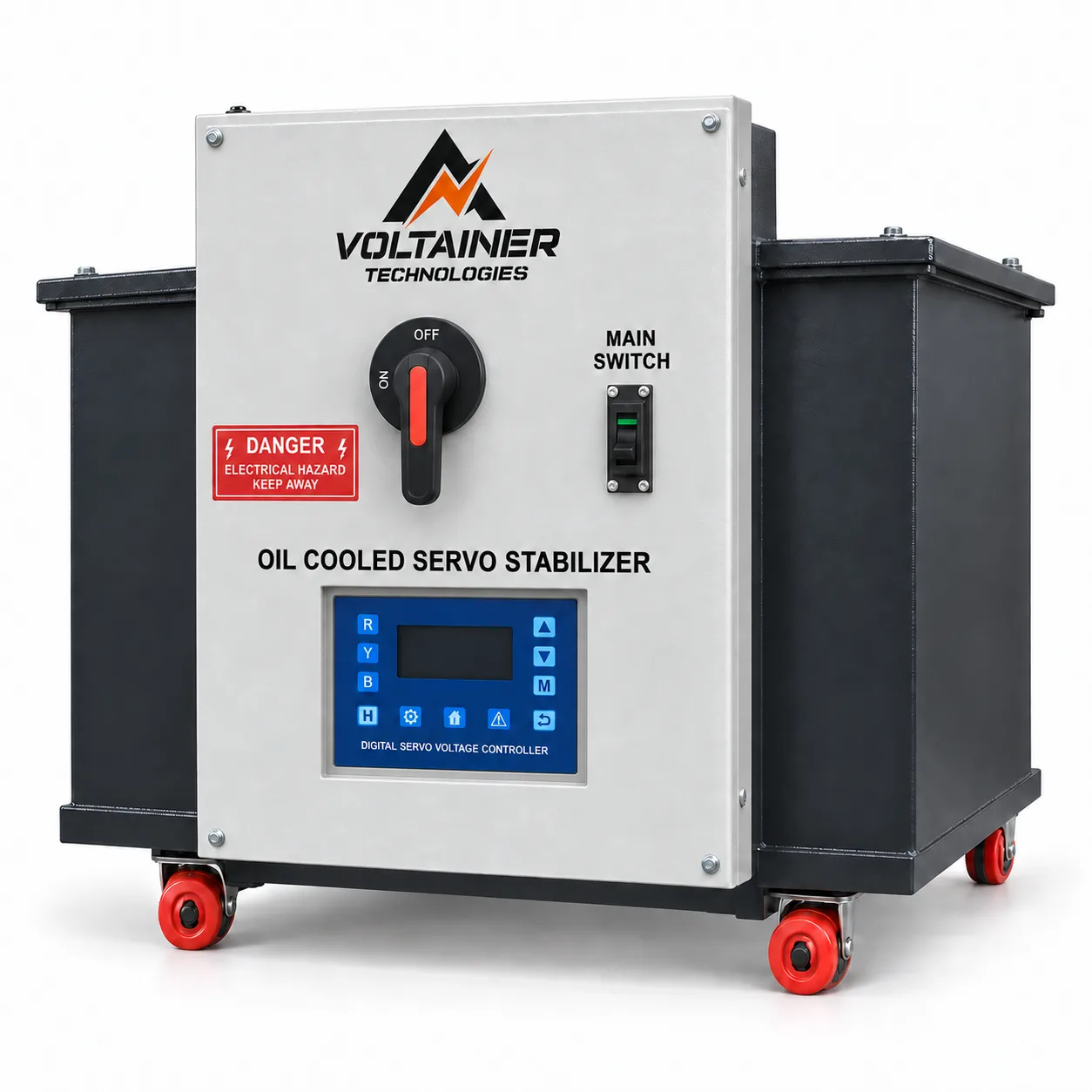

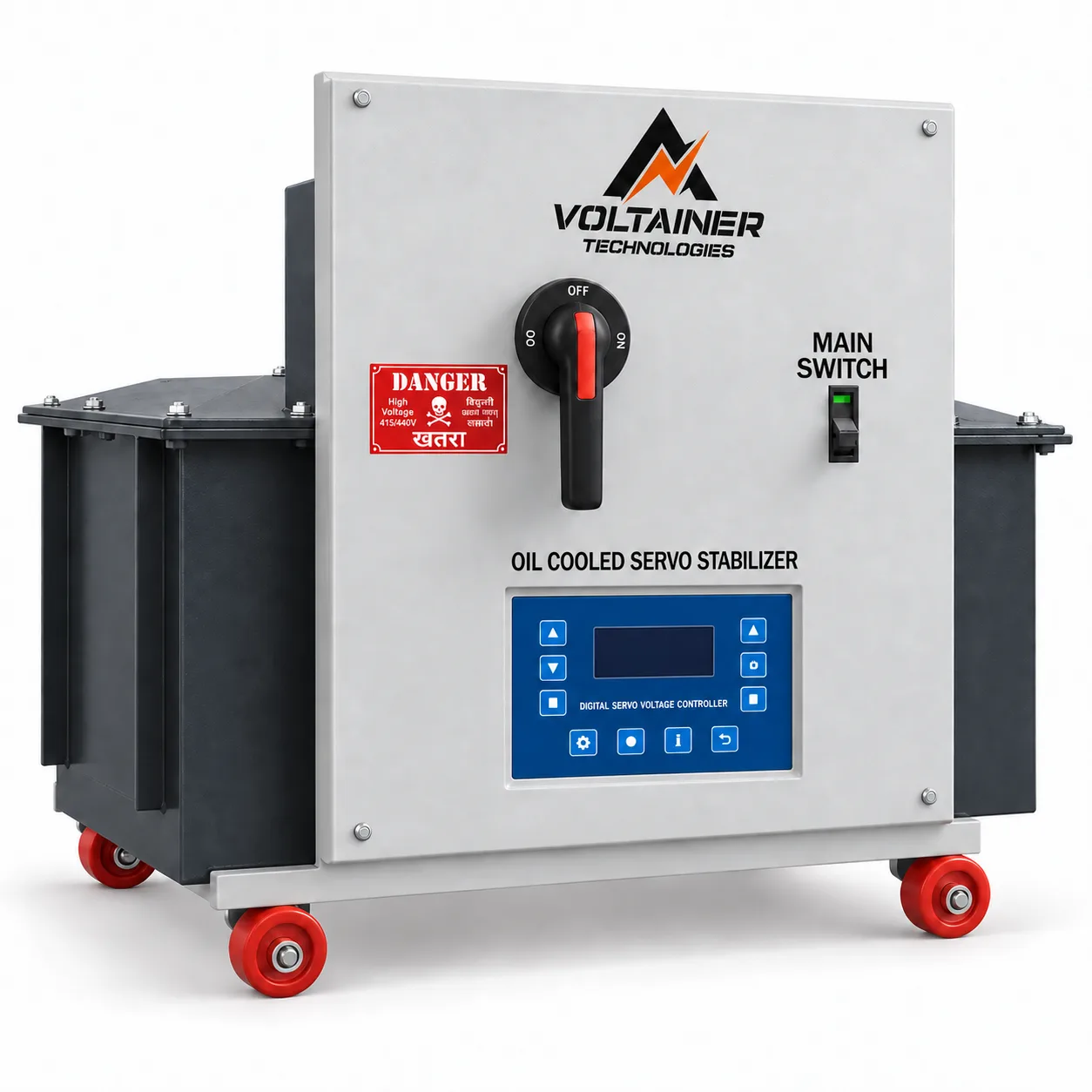

Oil Cooled Servo Stabilizer
Continuous-duty oil cooled servo stabilizer for heavy industry, available up to 3000 kVA with integrated bypass panel.
CapacityUp to 3000 kVA
Input Voltage340 – 480 V (3-phase)
Output Voltage415 V ±1%
PhaseThree Phase
CoolingOil Cooled
Ideal ForContinuous-duty heavy industry
Prefer to talk? Call +91 76002 76726
Product Overview
For large connected loads and round-the-clock production, oil cooling offers better heat dissipation and a longer service life. Voltainer oil cooled servo stabilizers house the variac and buck-boost transformer in a transformer-oil filled tank, with the control electronics and bypass switchgear in a separate panel.
They are the preferred choice for dusty, hot or humid sites — textile mills, plastic processing, RMC plants and mining operations.
Technical Specifications
| Capacity | Up to 3000 kVA |
|---|---|
| Input Voltage | 340 – 480 V |
| Output Voltage | 415 V ±1% |
| Phase | Three Phase, 4 Wire |
| Frequency | 50 Hz |
| Efficiency | > 98% |
| Cooling | Oil Cooled (ONAN) |
| Winding | Copper |
| Duty Cycle | Continuous |
| Protection | Over/under voltage, single phasing, overload, short circuit |
| Bypass | Rotary bypass changeover |
Specifications shown are typical values. Final ratings are confirmed in the quotation for your load and site conditions.
Key Features
- Transformer-oil cooled variac and buck-boost transformer
- Separate control panel with main switch and bypass changeover
- Digital servo voltage controller with R/Y/B metering
- Suitable for dusty and high-ambient-temperature sites
- Oil level indicator and breather arrangement
