Oil Cooled Servo Stabilizer
Continuous-duty oil cooled servo stabilizer for heavy industry, available up to 3000 kVA with integrated bypass panel.
- Capacity
- 75 TO 100 kVA
- Phase
- Three Phase
- Cooling
- Oil Cooled
Air Cooled Servo Voltage Stabilizer

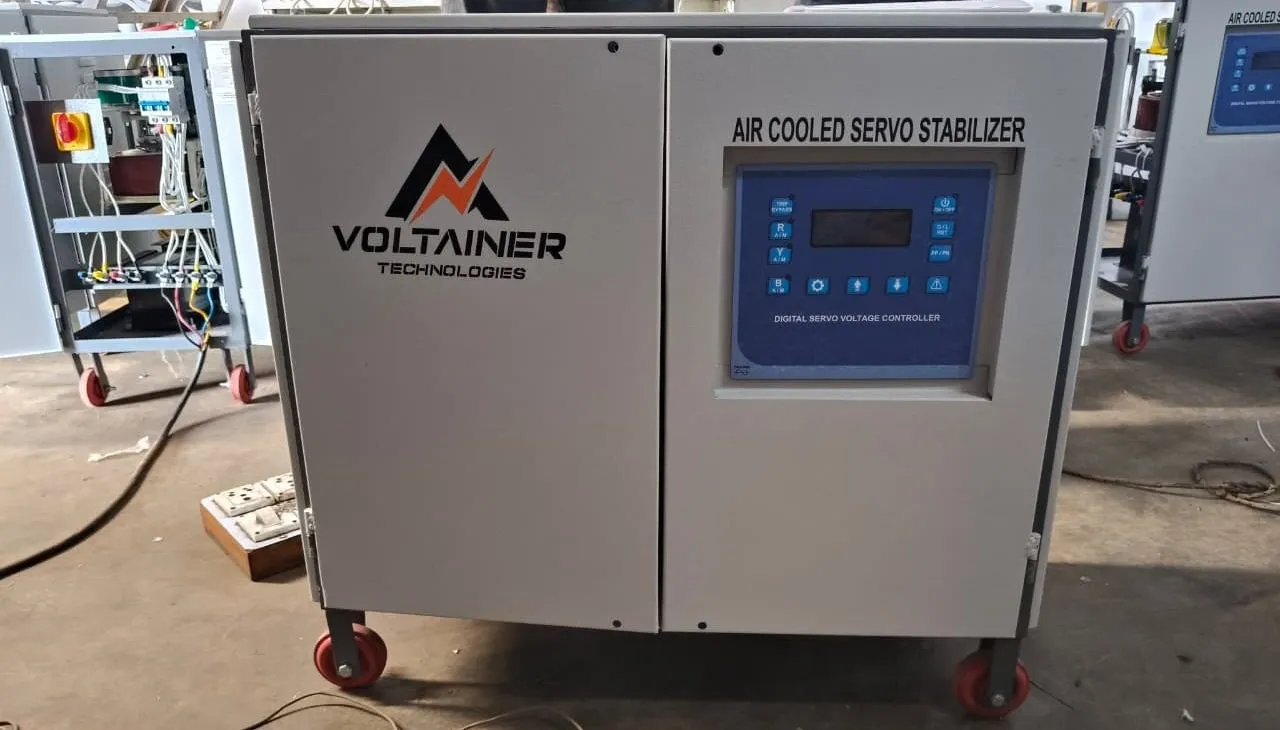

Three Phase Air Cooled Servo Stabilizer
Digital servo-controlled three phase stabilizer holding a clean 415 V ±1% for workshops, CNC machines and commercial buildings.
Capacity10 – 75 kVA
Input Voltage340 – 480 V (3-phase)
Output Voltage415 V ±1%
PhaseThree Phase
CoolingAir Cooled
Ideal ForWorkshops, CNC machines, cold storage, commercial buildings
Prefer to talk? Call +91 76002 76726
Product Overview
The Voltainer three phase air cooled servo stabilizer continuously monitors incoming supply and corrects it through a servo-driven variac and buck-boost transformer. The result is a steady 415 V ±1% output, even when the grid swings between 340 V and 480 V.
Every unit is built around a copper-wound variac and transformer, a digital servo voltage controller with metering on the front panel, and a full set of protections — so your motors, drives and controllers are shielded from the damage that unstable voltage causes.
Technical Specifications
| Capacity | 10 – 75 kVA |
|---|---|
| Input Voltage | 340 – 480 V |
| Output Voltage | 415 V ±1% |
| Phase | Three Phase, 4 Wire |
| Frequency | 50 Hz |
| Efficiency | > 98% |
| Waveform Distortion | Nil |
| Cooling | Air Cooled (forced air) |
| Winding | Copper |
| Control | Digital servo voltage controller |
| Metering | Digital V, A, kVA |
| Protection | Over/under voltage, single phasing, overload, short circuit |
| Bypass | Manual bypass switch |
Specifications shown are typical values. Final ratings are confirmed in the quotation for your load and site conditions.
Key Features
- Digital servo voltage controller with LCD metering
- Copper-wound variac and buck-boost transformer
- Independent phase correction available for unbalanced loads
- Manual bypass switch for zero-downtime servicing
- Over/under-voltage cut-off and single-phasing preventer
- Powder-coated enclosure on heavy-duty castor wheels
You may also need
Related Products
Servo Stabilizer with Bypass Panel
Servo stabilizer with integrated main switch and bypass changeover, so maintenance never stops production.
- Capacity
- 15 – 500 kVA
- Phase
- Three Phase
- Cooling
- Oil Cooled
OIL COOLED ISOLATION TRANSFORMER
Stabilizers designed around your connected load, input window, enclosure and site constraints.
- Capacity
- As per requirement
- Phase
- Three Phase
- Cooling
- Air / Oil Cooled
Not sure which rating you need?
Looking for Reliable Voltage Stabilization?
Send us your connected load — our engineer will size the right unit and share a quotation within 24 hours. Site survey is free within 250 km.
